Nema17 Planetary Gearbox Stepper Motors Geared Ration 5.18:1 17HS4413AG5.18

Nema17 Planetary Gearbox Stepper Motors Geared Ration 5.18:1 17HS4413AG5.18
  • Продавецmysm.us
  • Список ценUS $26.00piece
  • Продажная ценаUS $26.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,6 (399)

Oписание продукта

              Russia : Please provide the Full name of the recipient.

Korea :     Please provide 5-Digit Zip Code.
Brazil: Please provide receiver CPF NO or CNPJ NO, UPS must require it and we must declare real value, hope you understand it.

Tips: As this one is free shipping to some country, so we will choose the best shipping way to you if your country is free shipping.

Such as you from USA, when you place order you choose DHL, but we send to you maybe we use FEDEX OR UPS OR TNT ,and not notice you before shipping,if you mind it, please do not buy it.

To Brazil, it must use UPS,we must declare its real value and we must nee receiver\'s CPF NO, without CPF NO, UPS do not accept delivery!


In order to ensure successful delivery,  Please provide your correct mobile phone number, Thank you!

Package include

1pc OK42-STH38-1684AG51  Nema 17    51:1  Planetary Geared Stepper Motor

Motor Type Bipolar Stepper
Step Angle(W/O Gearbox) 1.8°
Holding Torque 1.68Nm
Rated Current/phase 1.68A
Phase Resistance 1.65ohms
Recommended Voltage 12-24V
Inductance 3.2mH±20%(1KHz)
Gearbox Type Planetary
Gear Ratio(Exact Gear Ratio) 5 + 2/11
Efficiency 90%
Backlash at No-load <=1°
Max.Permissible Torque 2Nm(283oz-in)
Moment Permissible Torque 4Nm(566oz-in)
Shaft Maximum Axial Load 50N
Shaft Maximum Radial Load 100N

124

you will get what you see.

Motor shaft size can be customized according to customer requirements

TB2arTHgXXXXXcfXXXXXXXXXXXX_!!1588117381

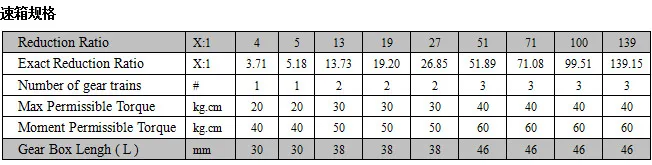

Model list

26222

6

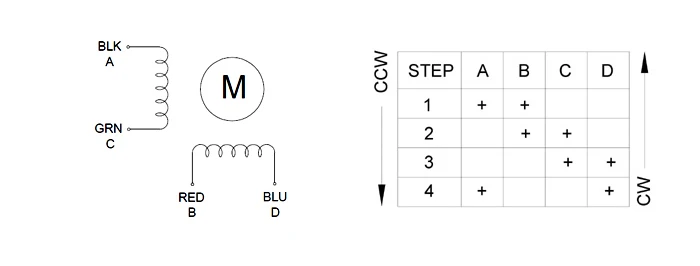

Wiring

7

Shipping
1. We have almost all product in stock, we will send out in 24 hours.
2. Normal Express: We----Agent----DHL/FedEx----Customer. Package to DHL/FedEx total cost 3 days. Tracking number will come out in 3 days.
    If you need directly send to DHL/FedEx, it will save the 3 days, cost is 5~10 times of Normally.
3. Post Air Mail sometimes will be delay, pls don\'t leave a 1~3 stars feedback due to this.
    If shipping delay, pls contact us extend confirm time before dispute. And keep in touch. It\'s repect to us.
4. If you are in Remote Area of DHL/FEDEX, we reserve the right charge for Remote Surcharge.
5. We will choose the best way send the goods to you if the courier you choosed it not good to Clearance.
6 .Customers responsible for CUSTOMS DUTY.

Payment
We accept bank TT,western union,moenybook,moenygram etc
Payment must be made within 48hours of the auction end time
Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility.

Refund
When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.
Any reason required for all refund. Item must be in it\'s original condition and no physical damage. Buyer responsible for all shipping cost.
express1

express
