GRBL controller arduino with USB and PMW ,cnc controller,laser control board,CNC wood router 3 Axis control board,A4988 chip

GRBL controller arduino with USB and PMW ,cnc controller,laser control board,CNC wood router 3 Axis control board,A4988 chip
  • Продавецmysm.us
  • Список ценUS $33.69piece
  • Продажная ценаUS $33.69piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (524)

Oписание продукта

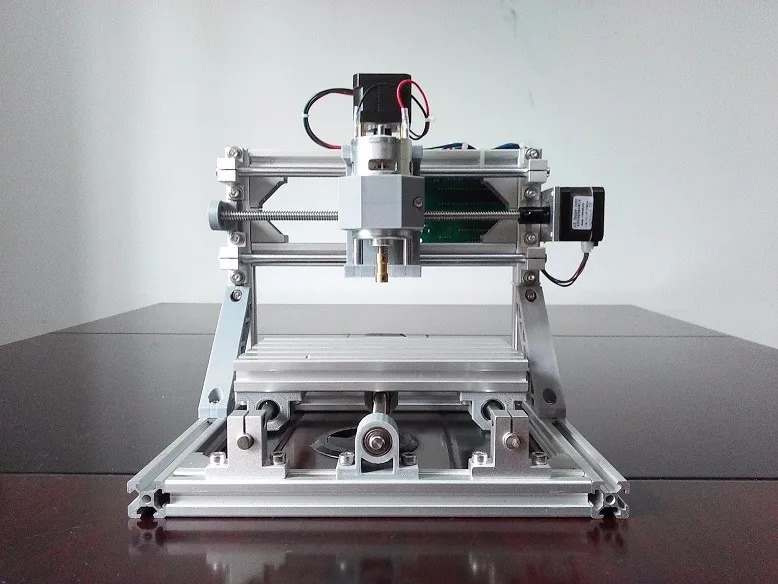

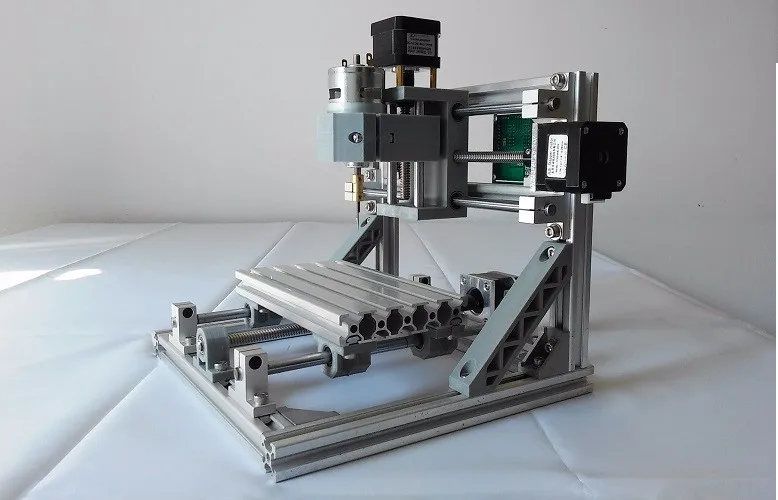

Body using profiles + plastic, small size, light weight, USB interface, GRBL control system, learning, getting started using the preferred. Both available and can use knife engraving, laser engraving



000100002000030004





Detailed parameters:

Profile dimensions: 260x240x220mm (excluding motor highlights)
Stroke (engraving range):160x100x45mm
Silk bar: professional T8 wire rod, lead 4mm, double brass nut back difference
Stepping motor: a new 42 step motor. Reliable quality
Voltage: 12V, phase current 1.3A, phase resistance 2.1 ohm, torque 0.25N.m
Spindle: 775 spindle motor (12-36V) 24V:7000r/min, 36V:9000r/min
Laser head: see package
Power supply: 5A 24V power adapter (input voltage 110-240V), simple and convenient
Table top: 20100 profiles (table size: 180x100mm)
Rack: 2020 profiles
Grey part material: plastic
============================================================
Package description:

kit +12V500mw laser head
Description: on the basis of the motor plus a 500MW 12V laser head.
Accessories: a full set of six angle wrench, 20 knife 2 degrees 0.1mm.
