Nema17 Stepper Motor 42 motor Extruder Gear Stepper Motor Ratio 5.18:1 Planetary Gearbox Nema 17 Step Motor

Oписание продукта

42mm Planetary Gearbox Geared Stepper Motor Ratio 5.18:1 Nema17 L 34mm 1.5A 3D Printer

Title: 42 stepper motor reducer

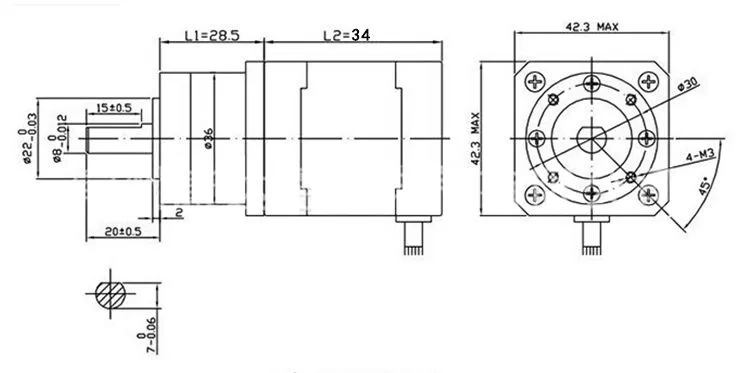

Size: 42x42x62mm

Stepping accuracy: 5%

Model: 42BYG5.18

Maximum static torque: 0.28NM x 5.18

Shaft: 8mm D type

DEMO SHAPE:

Wiring: black line=A+, green line=A-, red=B+, blue line=B-

Stepper motor driver adapted: M420B

general introduction
